12v To 24v Bldc Motor Driver Module For Avg Car Cnc Machine 8A Bld-120a

  • 1
  • 2

Brand Name : JSS-MOTOR

Model Number : BLD-120A

Certification : CE, ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Price : negotable

Payment Terms : T/T, Western Union，credit card, paypal

Supply Ability : 30000pcs/month

Delivery Time : 1-15days

Packaging Details : cartons

Name : brushless dc driver

voltage range : 12-30VDC

Suitable motor : power ≤125W

Max speed : 20000RPM

rated current : 8A

size : 96*60*25CM

Application : CNC Machine

Contact Now

Brushless Dc Motor Driver AVG CAR CNC MACHINE BLD-120A 12-24V 20000 rpm black BLDC motor support

12v To 24v Bldc Motor Driver Module For Avg Car Cnc Machine 8A Bld-120a

Electrical parameters:

Parameter Min Rated Max Unit
Motor Hall angle 120°/240°
DC input voltage 12 24 30 V
Driving current output 0 5 8 A
Applicable motor speed 0 20000 rpm
Hall signal voltage 4.5 5 5.5 V
Hall signal current 20 mA
External potentiometer 10k Ω

Flag definitions
DC + / DC- DC power entry (DC24V ~ DC48V) positive and negative do not reversed
U, V, W motor leads (thick line connected U, V, W)
Hu, Hv, Hw Hall signal line (thin pick Hu, Hv, Hw)
REF + Hall positive power supply (power supply to the motor Hall + 5V)
REF- Hall negative power supply - (Hall ground connected to this port)
VCC power port external potentiometer (not to other external circuitry, can only do potentiometer power use)
SV external potentiometer terminals (see speed control instructions)
COM Public port (low level)
F / R directions: Leave or high forward and low reverse
EN Enable: High / Low stop / run
BRK fast brakes: High / Low stop / run
SPEED speed signal output port
ALARM alarm signal output port

Brushless dc driver:

Features:

Acceleration/deceleration time setting

Maximun current output setting

Motor torque holding

Restart

Various alarm indications

Internal potentiometer speed control

External analog signal speed regulation

PWM speed control

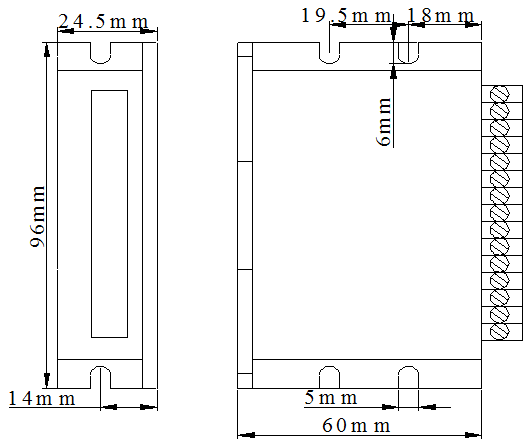

Dimensions:

12v To 24v Bldc Motor Driver Module For Avg Car Cnc Machine 8A Bld-120a

12v To 24v Bldc Motor Driver Module For Avg Car Cnc Machine 8A Bld-120a
